Grain Sampling Probe for Sale

Grain sampling probe is designed for obtaining a representative sample that will accurately reflect the characteristics of the whole bulk from bags, cars, trucks, wagons and so on. A sampling should be done in six and more places. Our probes comply with international standards.

We manufacture probes of length 0.6 metre, 1 meter, 1.5 meter, 2 meter, 2.5 meter and 3 meter; diameters 25 mm, 35 mm, 50 mm and 60 mm. They are manufactured in double tube probe with sequential straight or spiral openings from the bottom to the top. When rotating the handle at the top of probe, the openings open successively, allowing gradual filling of the probe. The probe itself is made of stainless steel 304 or aluminium carbon alloy with pre-installed metal tip improved or coned metal.

Technical Specifications

Grain Sampling Probe Technical Specifications
Standard production: D=25/35/50mm: A=120 mm, B=60 mm. Standard production (can be accustomed)
D, mm C, mm E, mm
25 12 95
35 20 95
50 28 95

D=25mm D=35 mm D=50 mm
Length, mm Openings (N) Length, mm Openings (N) Length, mm Openings (N)
(L) (L) (L)
750 3 1000 4 1000 4
1000 4 1500 6 1500 6
1500 6 2000 8 2000 8
2000 8 2500 10 2500 10
2500 10 3000 12 3000 12
Spiral or Straight slots. Spiral: The angle between the first and the last hole position is 90 degrees The size A, B, N, L can be changed by request. Material: Stainless Stell 304 or Aluminum Carbon Alloy. Packaging: Carton tube. Minimum order – 1 pcs. Production time 6-8 weeks.

Main Applications

The probe can be used for all applications where samples need to be pulled from grain bins, trucks, wagons, etc… With the aid of hand grip, you can easily apply pressure by limiting damages on the probe. It can also be switched from a probe to another. We fix the hand grip onto the probe from its bottom and according the probe dimension because there are two hand grip dimensions, 35 mm and 50 mm. The metal tip is the common tip used traditionally and can be used for the lifetime of the device. For a secured shipping of the sampling probe, we use brown cardboard tube so that the probe cannot undergo any damages. According to the diameters below our probe can easily sample: Internal / external diameter
  • 27/35 mm : Recommended crops : Wheat, barley, rye, rape, triticale, oats, sorghum, millet, peas, green foxtail, prose millet, finger millet, rice etc.
  • 41/50 m : Recommended crops : Soy, corn, sunflower, chickpeas etc…
The volume sampled can be approximately as indicated in the chart below.

  GSS 1.5m Ø GSS 2m Ø GSS 3m Ø GSS 1.5m Ø GSS 2m Ø GSS 3m Ø
  35 mm 35 mm 35 mm 50 mm 50 mm 50mm

≈ Sample 850 1100 1700 1300 1700 2700
volume, ml


Compliance with Standards:
  • Seeds of agricultural crops.
  • Seeds of oilseeds crops.
  • Rules of acceptance and sampling methods.
  • Cereals and products of processing thereof. Sampling.

Grain Sampling Probe Model Ogawa

OGAWA SUS2510

Grain Sampling Ogawa SUS2510

For sampling small grains with a maximum diameter of 10 mm such as rice, shelled corn, soybeans in sacks of at least 400 mL.

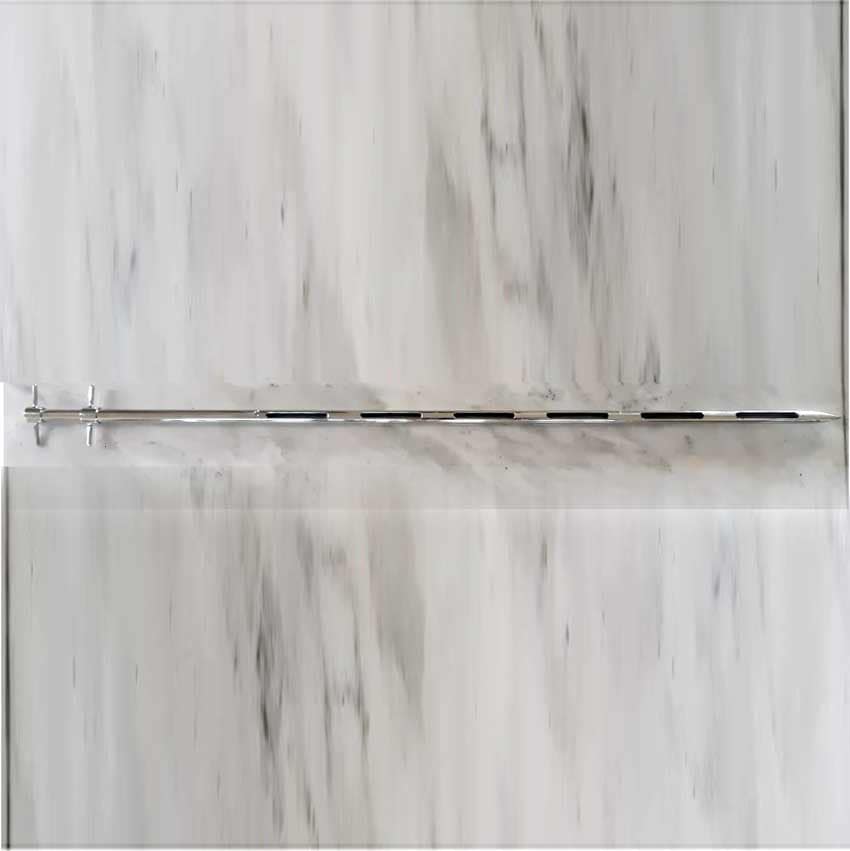

Ogawa SUS2515

Grain Sampling Ogawa SUS2515

For sampling small grains, the maximum diameter is 10 mm, such as rice, shelled corn, soybeans, in sacks of at least 650 mL.

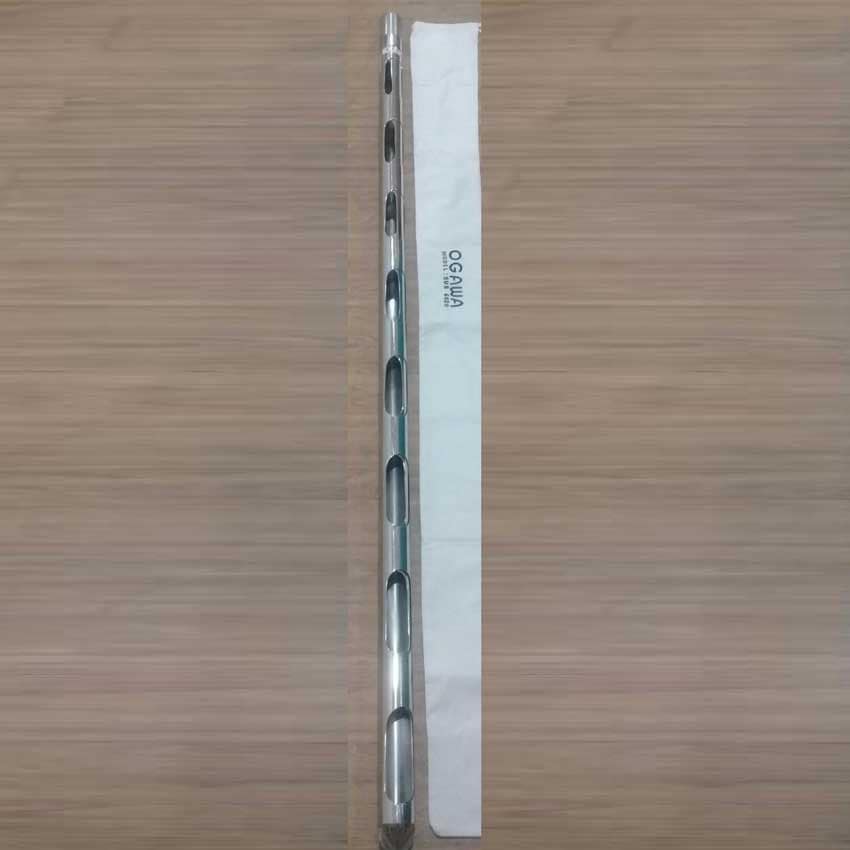

Ogawa SUS6020

Grain Sampling Ogawa SUS6020

For sampling grains, the maximum diameter is 45 mm, such as rice, corn, flour, soybeans, nutmeg, palm kernels in bags of at least 1800 mL.

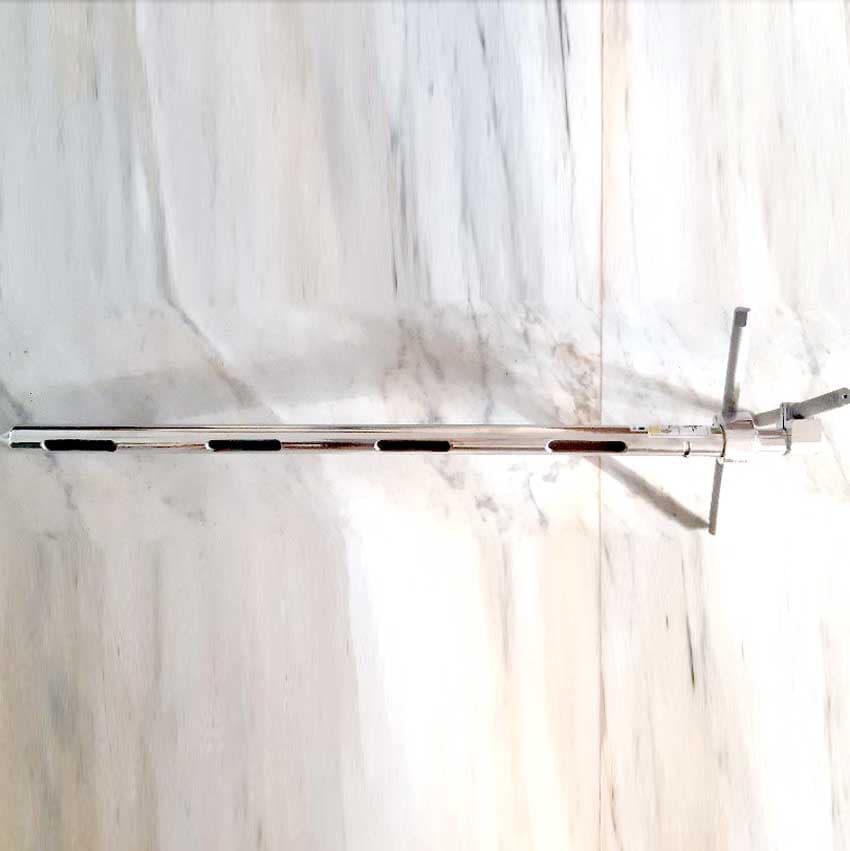

Ogawa ACC3510

Grain Sampling Ogawa ACC3510

For sampling small grains, the maximum diameter is 13 mm, such as rice, shelled corn, soybeans in sacks of 700 mL.

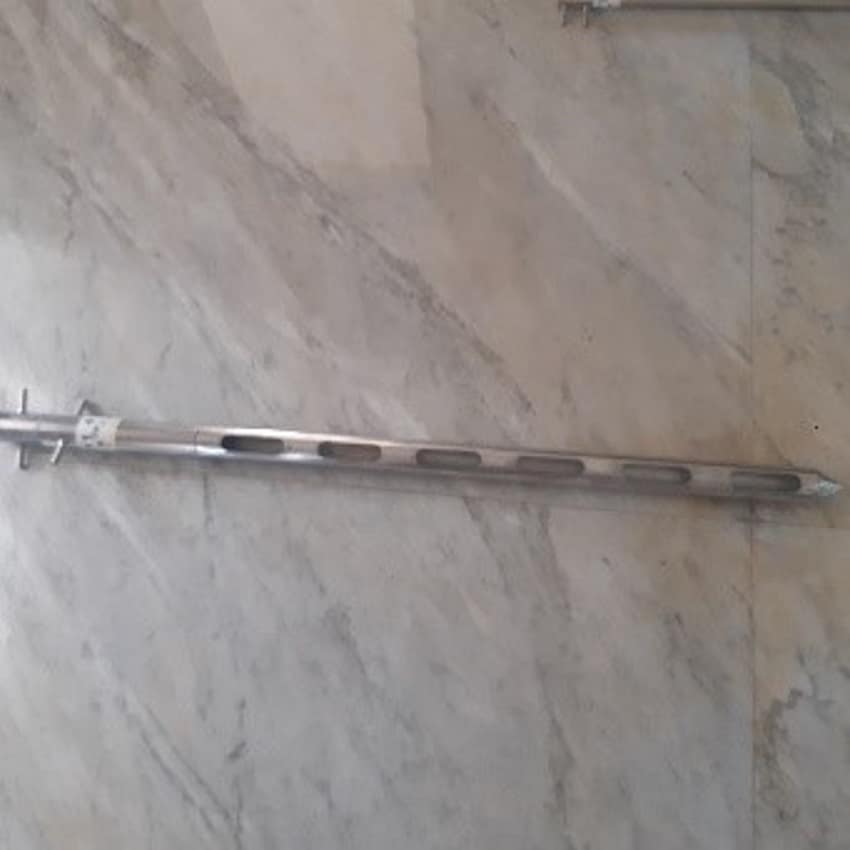

Ogawa ACC3515

Grain Sampling Ogawa ACC3515

For sampling small grains, the maximum diameter is 13 mm, such as rice, shelled corn, soybeans in sacks of 850 mL.

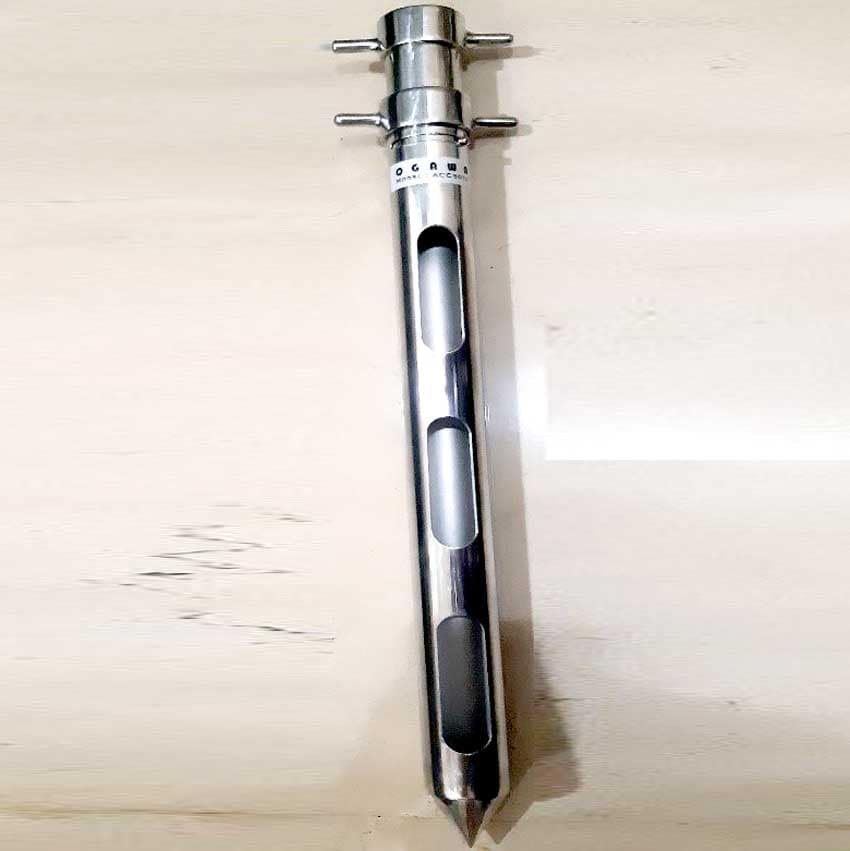

OGAWA ACC5010

Grain Sampling Ogawa ACC5010

For sampling medium to large grains, the maximum diameter is 22 mm, such as rice, corn, coffee, soybeans, nutmeg, palm kernel seeds in bags of 1100 mL.

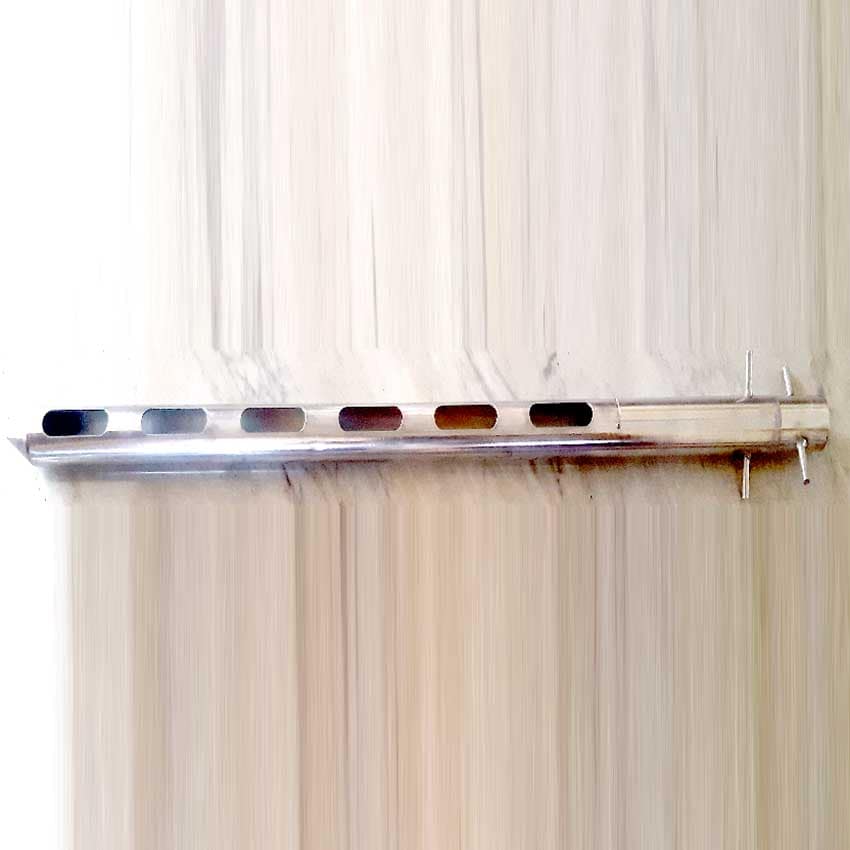

OGAWA ACC5015

Grain Sampling Ogawa ACC5015

For sampling medium to large grains, the maximum diameter is 22 mm, such as rice, corn, coffee, soybeans, nutmeg, palm kernel seeds in sacks of 1300 mL.

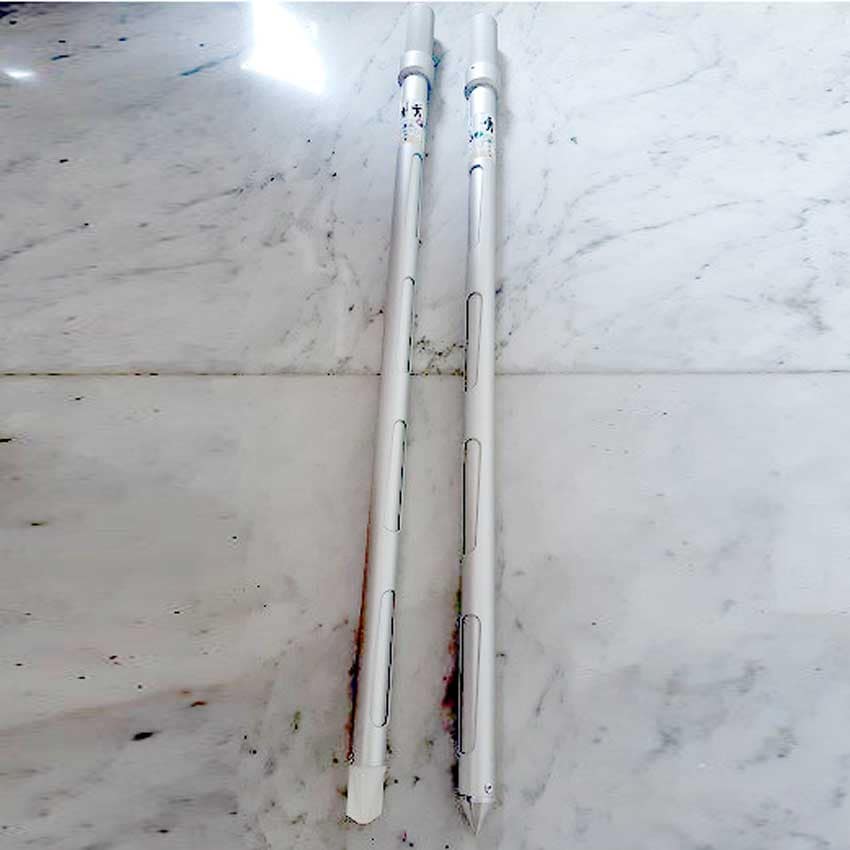

OGAWA ACA3510

Grain Sampling Ogawa ACA3510

For sampling medium to large grains, the maximum diameter is 12 mm, such as rice, shelled corn, coffee, soybeans in sacks of 600 mL.

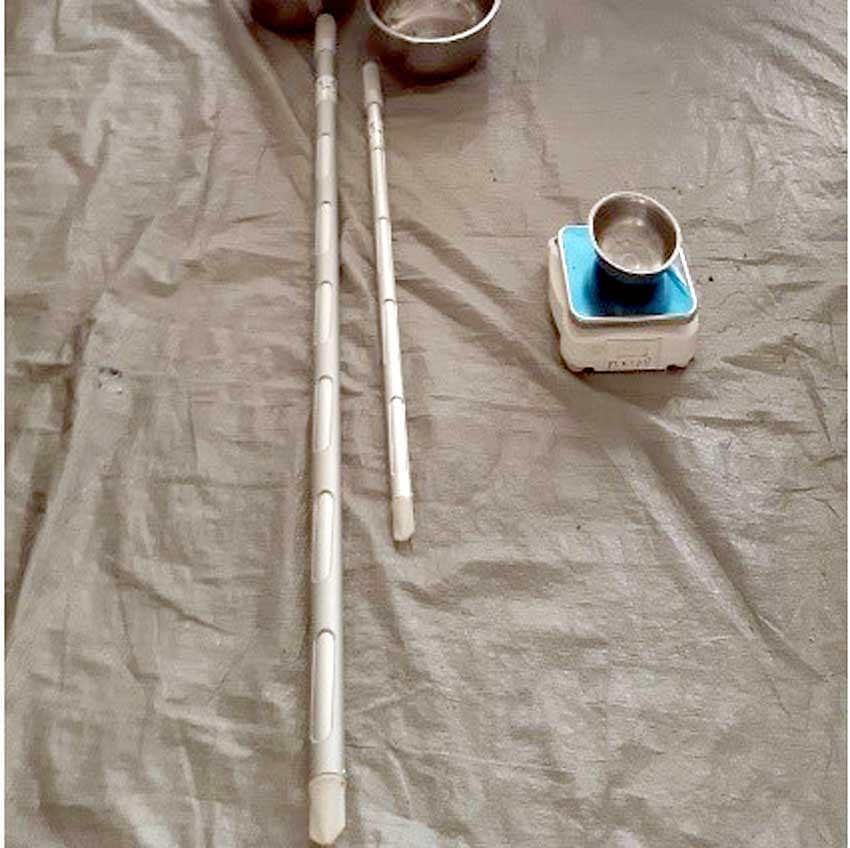

OGAWA ACA3515

Grain Sampling Ogawa ACA3515

For sampling medium to large grains, the maximum diameter is 12 mm, such as rice, shelled corn, coffee, soybeans in sacks of 850 mL.

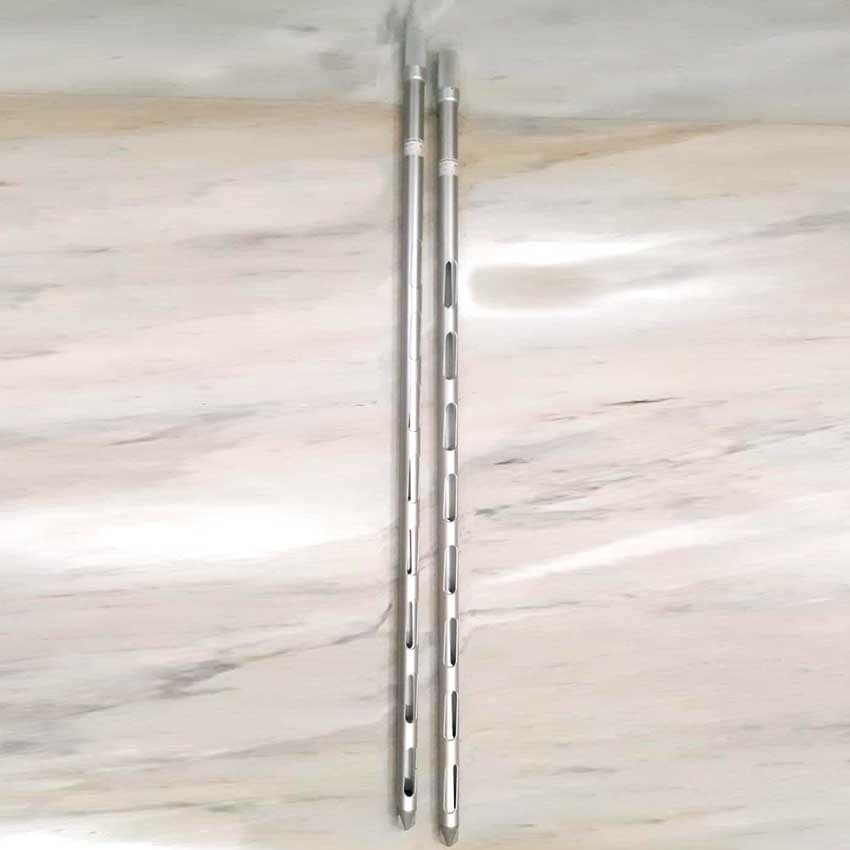

OGAWA ACA3520

Grain Sampling Ogawa ACA3520

For sampling medium to large grains, the maximum diameter is 12 mm, such as rice, shelled corn, coffee, soybeans in sacks of 1100 mL.

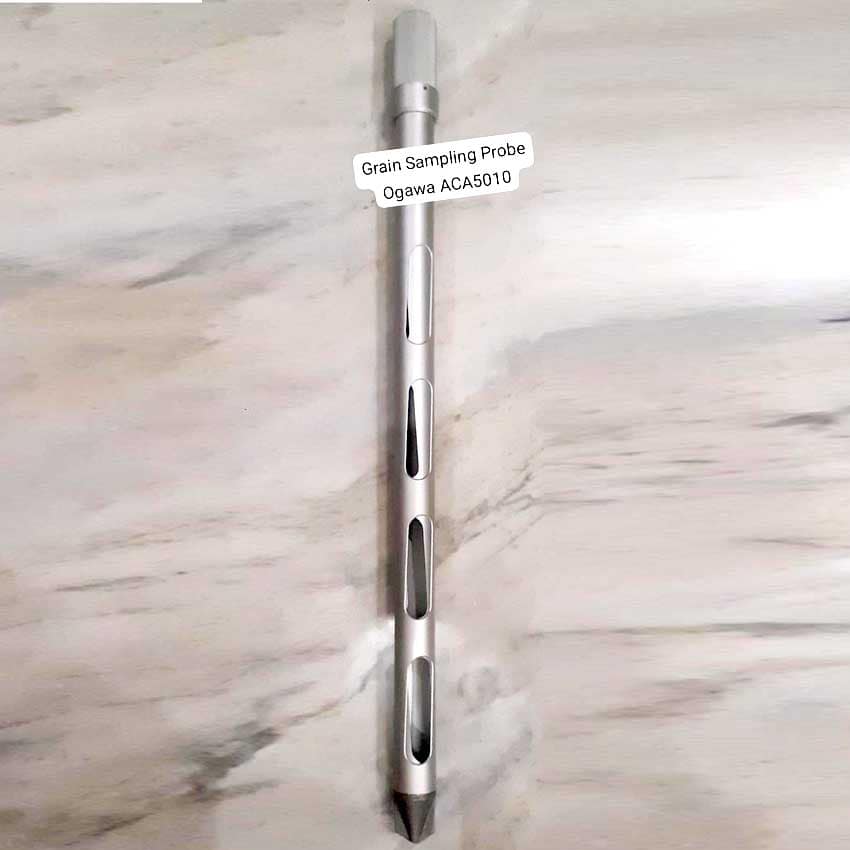

OGAWA ACA5010

Grain Sampling Ogawa ACA5010

For sampling medium to large grains, the maximum diameter is 22 mm, such as rice, corn, coffee, soybeans, nutmeg, palm kernel seeds in bags of 1100 mL.

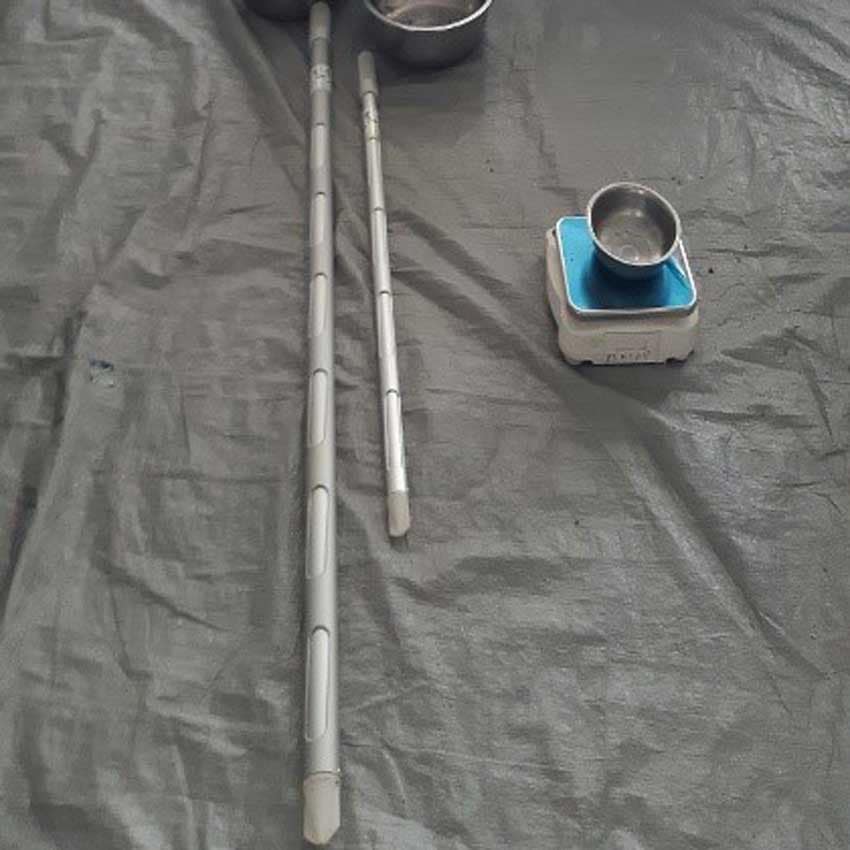

OGAWA ACA5015

Grain Sampling Ogawa ACA5015

For sampling medium to large grains, the maximum diameter is 22 mm, such as rice, corn, coffee, soybeans, nutmeg, palm kernel seeds in bags of 1300 mL.

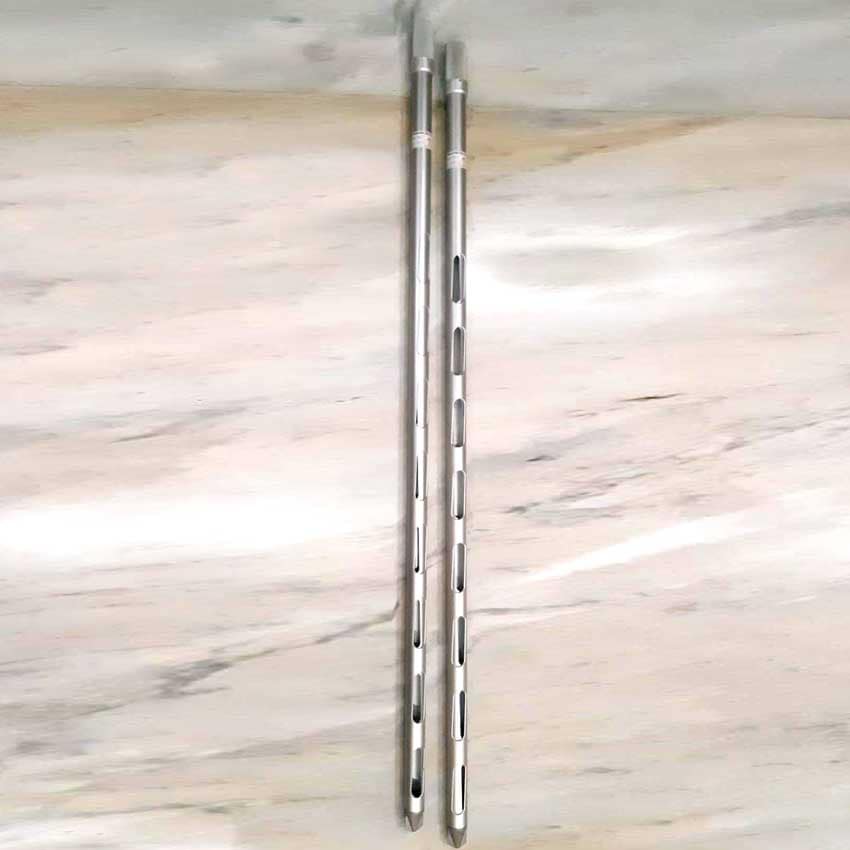

OGAWA ACA5020

Grain Sampling Ogawa ACA5020

For sampling medium to large grains, the maximum diameter is 22 mm, such as rice, corn, coffee, soybeans, nutmeg, palm kernels in bags of 1700 mL.
